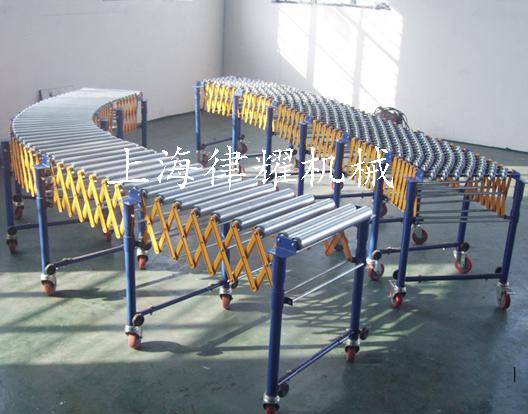

Technical parameters: Telescopic roller conveyor is the use of scalable components that do rack conveyor. The body can freely change direction, change any angle, leg height can be adjusted, the lower has casters can move, casters with brakes. Rotatable member has a single row of rollers, double rollers and a blessing to the wheel, the roller diameter is generally 38mm, 50mm.
Roller material: PVC or steel, telescopic machine as a single at least two units, with a networking chip as a unit.
The main features are:
1 small footprint, flexibility, unit expansion volume of 1: 3.
2 can be easily changed conveying path, the conveying direction.
3 lightweight and convenient, as will roll to roll, lighter weight.
4 with driving means, power transmission can be achieved.
5 unit carrying capacity, maximum only 55kg.
Common specifications are as follows:
Transmission medium: a single roll, double roll, Fuk Loi round.
Unit length: 464mm-1160mm (diameter 38mm), 570mm-1170mm (diameter 50mm).
Roll (wheel) diameter: 38mm, 50mm.
Rollers (round) Material: Nylon blessing to round, galvanized blessing to round, POM roller, roller galvanized, stainless steel rollers.
Unit load: round: 30kg, roller: 45kg (diameter 38mm), 55kg (diameter 50mm)
