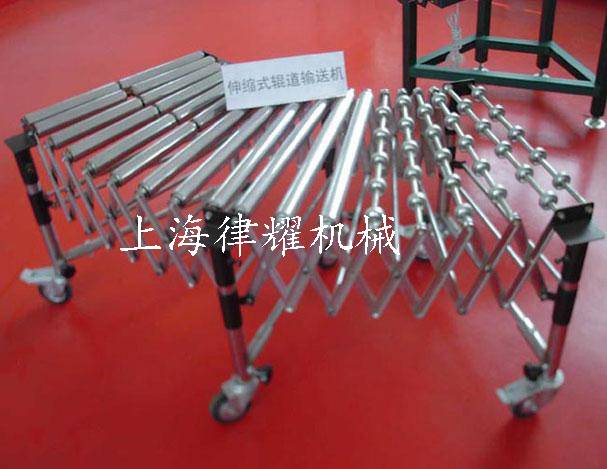

Technical parameters: telescopic conveyor roller is the expansion of component frame of the conveyor. The body can be free to change at any angle and leg height can be adjusted, the lower part is provided with casters can move, casters with brakes. The rotating parts of single row roller, double row roller skate wheels roller generally use 38mm in diameter and 50mm. Roller material: PVC or steel, telescoping mechanism as a single at least two units, with a piece of a network as a unit.

Main features are: 1 covers an area of small, flexible, unit expansion amount is 1:3.

2 can easily change the conveying path and the conveying direction.

3，Lightweight convenience, such as the roller is a rolling wheel, the weight is light.

4 with driving device can realize power transmission. Unit

5 bearing capacity is small, the largest only 55kg.

Common specifications are as follows:

conveying medium: single roller, double roller, skate wheels. Unit length: 464mm - 1160mm (diameter 38 mm), 570mm-1170mm (with a diameter of 50mm). And wheel diameter of 38 mm and 50 mm. And (wheel) material: Nylon skate wheels, galvanized skate wheels, POM roller, galvanized roll, stainless steel roller. Unit bearing: Round 3 0kg, roll: 45kg (diameter 38mm), 55kg (diameter 50mm)
